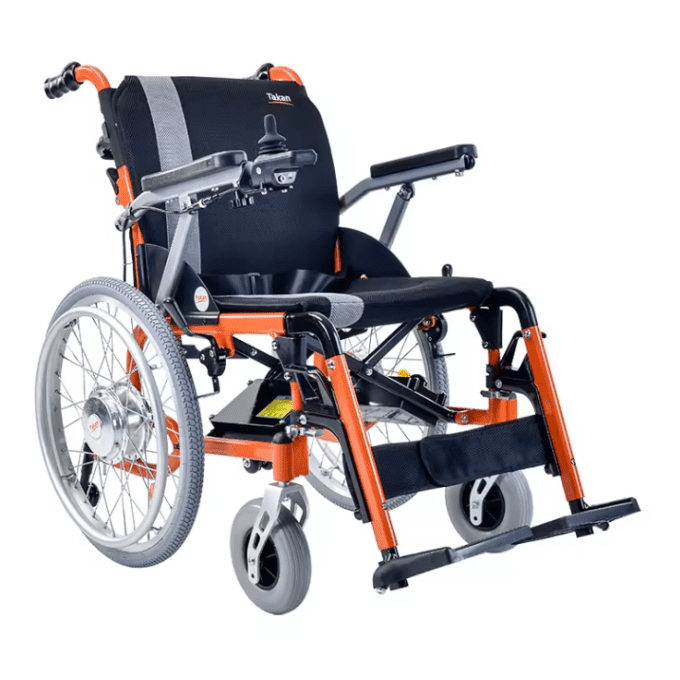

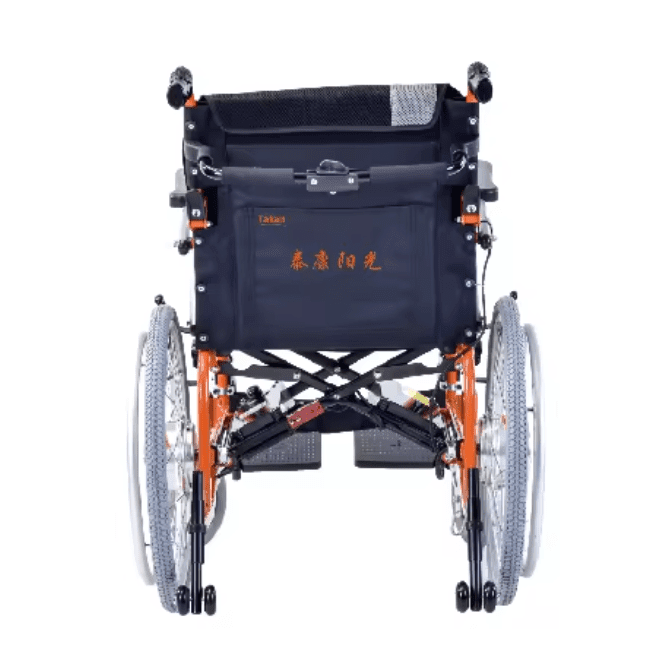

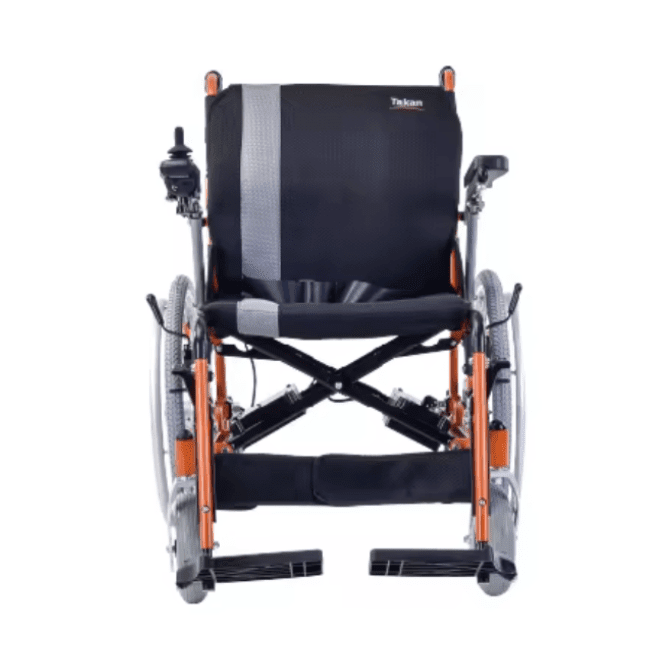

Electric Wheelchair Ergonomic Backrest/Seat Adjustment for Disabled People
This wheelchair features a high-efficiency brushless hub motor with a 250W power output and a 1:8 gear reduction ratio, providing smooth, silent operation and enhanced torque for better performance on slopes and uneven terrain. It also includes a foldable backrest, adjustable pelvic safety belt, and ergonomic hand grips with acupoint massage, ensuring comfort and safety for the user.
Additional information
| Model Number | DYW-459-46A6 |
|---|---|
| Color | Orange |
| Material | Aluminium Alloy |
| Front Wheel | 8" PU Solid Tyre |
| Rear Wheel | 20" Pneumatic Tyre |
| Max. Load | 100kg |
| Foadable | Yes |
Products Details:
- Configuration:
- Frame: Made of aluminum alloy with dimensions 30mm×18mm×2mm (DLT), painted in orange.
- Armrests: Rear-flip structure with PU material armrest pads and fixed side guards.
- Handles: Equipped with hand acupoint massage grips.
- Seat and Back Cushion: Black Oxford mesh fabric for the seat and back cushion, providing good breathability, softness, and comfort.
- Seat Belt: Adjustable pelvic safety belt.
- Footrests: Handle-type 90° inward and outward rotating footrests, removable with rotatable pedals and adjustable height.

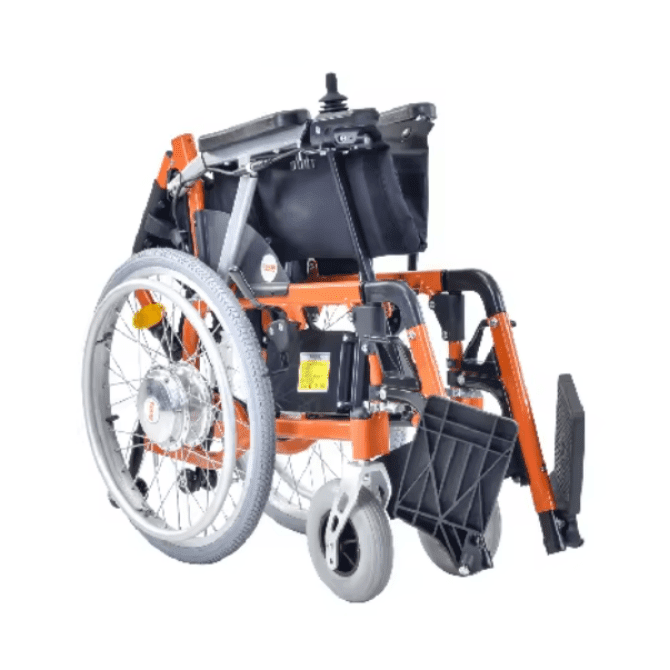

- Foldable Backrest: Features a foldable backrest.
- Controller: Sine wave controller with the following features:
- Silent operation
- Precise directional control
- Smooth output
- Brakes: Equipped with manual brakes.
- Drive System: High-efficiency brushless hub motor with silent processing, 250W power, 1:8 gear reduction ratio, and electronic braking function.
- Performance:
- Maximum Speed: 6 km/h.
- Range: 18 ± 10% km.
- Load Capacity: 100 kg.
- Front Wheels: 8-inch PU solid tires.
- Rear Wheels: 20-inch pneumatic tires.
- Battery: Removable lithium battery (24V/6AH).
